Equinox


Item#: 8000

Price: $0.00


Order Now

Item description (Part Number)

QTY: A1 TOP: MATTE (2010-095) +$434.95

QTY: A2 HEATSHIELD: TOP (5000-402) +$173.08

QTY: A3 SUPPORT: TOP STONE (2010-090) +$427.64

QTY: A4 STONE: POL,T,9.62 INCH X 8.99 INCH X 1.18 INCH (1041-060) +$184.04

QTY: A5 STONE: POL,T[LG],12.03x9.62x1.18 (1041-070) +$151.16

QTY: A6 COLLAR: FLUE EXIT (2010-082) +$216.93

QTY: B7 PIPE: AIR, SECONDARY RISER (5000-301) +$344.82

QTY: B8 PLENUM: AIR,SECONDARY,BOTTOM (2010-085) +$322.90

QTY: B9 AIR TUBE 1: SECONDARY (5000-581) +$166.99

QTY: B10 AIR TUBE 2: SECONDARY (5000-582) +$131.45

QTY: B11 AIR TUBE 3: SECONDARY (5000-583) +$168.21

QTY: B12 AIR TUBE 4: SECONDARY (5000-584) +$168.21

QTY: B13 PLENUM: AIR,SECONDARY,TOP (2010-087) +$375.27

QTY: B14 BOARD: CERAMIC,BAFFLE ~OLD PART #3120-001~ (90-76010) +$166.99

QTY: B15 BRACKET: BAFFLE,SS,HER 1 (5021-066) +$41.52

QTY: B16 SUPPORT: BAFFLE (5000-401) +$140.34

QTY: C17 FRAME: FLUE,MATTE (2010-080) +$341.17

QTY: C18 PLATE: FLUE (2010-081) +$232.76

QTY: G19 FOOT: MATTE (2010-005) +$232.76

QTY: G21 ROD: SHAKER, ASH GRATE (5000-113) +$175.52

QTY: G22 BRACKET: HINGE, ASH DOOR (5000-103) +$55.36

QTY: G23 LEVER: PRIMARY AIR (5000-131) +$41.52

QTY: G24 HANDLE: WOOD,PRIM (3900-185) +$32.76

QTY: G25 GUIDE WHEEL, ASH DRAWER (5000-102) +$81.90

QTY: G26 SPRING: LATCH,FRONT,CHA 1/STO 1 (5240-136) +$42.79

QTY: G27 ROD: PRIMARY AIR, LINKAGE (5000-133) +$66.79

QTY: G28 FRAME: ASH PAN (2010-010) +$665.15

QTY: G29 SUPPORT: ASH GRATE (5000-110) +$18.34

QTY: E30 PLATE: HINGE, DOOR (5000-320) +$32.76

QTY: G31 STUD: 3/8-16x1-3/8,FULLY THREADED (4500-2505) +$14.34

QTY: G32 HANDLE: DOOR,ASH PAN (2010-017) +$46.60

QTY: G33 DOOR: ASH PAN (2010-015) +$322.90

QTY: G34 BOTTOM: MATTE (2010-020) +$906.32

QTY: G35 PAN: ASH DRAWER (5000-120) +$214.49

QTY: G36 PAN: ASH TRAY (5000-121) +$195.01

QTY: G37 PAN, ASH COVER (5000-122) +$156.03

QTY: G38 HANDLE, ASH COVER (5000-123) +$30.02

QTY: G39 PLATE: PRIMARY AIR (5000-130) +$55.36

QTY: G40 SHUTTER: HOLD DOWN, PRIMARY AIR (5000-135) +$42.79

QTY: G41 BASE: ASH GRATE (2010-025) +$269.30

QTY: G42 GRATE: ASH (2010-027) +$216.93

QTY: G43 STONE : REFRACTORY, 4 INCH X1.6 INCH X 1-1/4 INCH (1-0000-002) +$17.01

QTY: G44 STONE : REFRACTORY, 7-1/2 INCH X 4-1/2 INCH (1-0000-001) +$55.36

QTY: E45 HANDLE: WOOD (3900-184) +$32.76

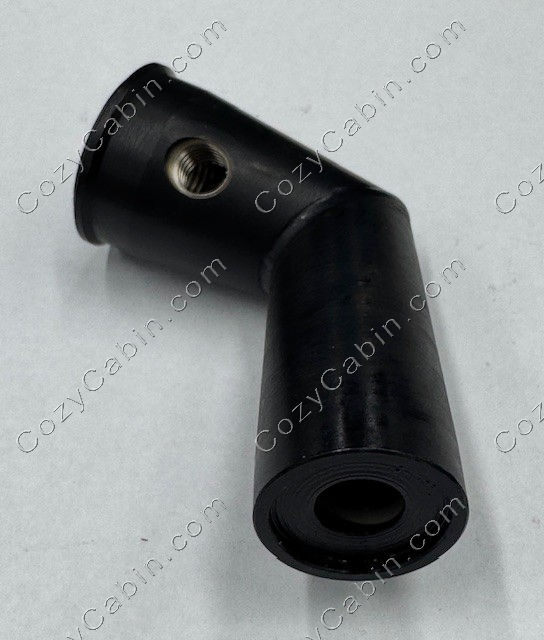

QTY: E46 HANDLE CRANK: BLACK NICKEL (5000-565) +$84.44

QTY: E46A DOOR LATCH ASSEMBLY (90-73010) +$75.55

QTY: E47 SPRING: LATCH,WOOD STOVES,325# (5240-138) +$23.35

QTY: E48 WASHER: FLAT, .406 INCH, IDX1 INCH, ODX.035 INCH, T BLACK (5021-032) +$10.65

QTY: E49 SPACER: DOOR LATCH,0.560 INCH x0.500 INCH x0.03 (4700-0792) +$10.65

QTY: E50 LATCH, DOOR, FRONT (5000-322) +$75.55

QTY: F51 DOOR: FRONT,MATTE (2010-075) +$393.54

QTY: F52 PIN: HINGE PLATE, DOOR (5000-323) +$42.79

QTY: F53 GLASS ~OLD PART #3030-048~ (90-58205) +$338.73

QTY: F54 GASKET: GLASS CLIP,BLACK, HER 1/TRI (3120-021) +$10.65

QTY: F55 CLIP: GLASS,HER 1/TRI (5021-060) +$14.34

QTY: F56 FRAME: DOOR,FRONT (2010-070) +$251.03

QTY: F57 BUSHING: DOOR, 3/8 inch x1/2 inch ,BRASS ~Old part #5000-104~ (5000-105) +$27.35

QTY: F58 PLENUM: AIR,PRIMARY (2010-040) +$481.24

QTY: E59 DOOR: SIDE,MATTE (2010-055) +$375.27

QTY: E60 STONE: POL, ,SIDE DOOR,11.125 INCH X 9/5 INCH X .45 INCH (1041-030) +$191.35

QTY: E61 PLATE: STONE RETAINER,SIDE DOOR (2010-057) +$304.63

QTY: E62 SHAFT:HINGE,L (5000-325) +$30.02

QTY: E63 BUSHING:SHOULDER (5000-105) +$27.35

QTY: E64 SLEEVE,SPRING RETAINING (5000-106) +$32.76

QTY: E65 SPRING:TORSION,SIDE DOOR (5240-142) +$88.25

QTY: E66 SHAFT:HINGE,R (5000-324) +$30.02

QTY: E67 FRAME: DOOR,SIDE,OUTER [The door latch catches into this piece] (2010-045) +$322.90

QTY: E68 FRAME: DOOR,SIDE,INNER (2010-047) +$304.63

QTY: E69 GUARD: ASH, SIDE DOOR (5000-310) +$166.99

QTY: E70 CLIP: HINGE,SIDE DOOR,BEN (5350-032) +$28.69

QTY: D71 STONE: POL,FBS, 9.86 INCH X 3.75 INCH X 1.18 INCH (1041-050) +$92.06

QTY: D72 STONE: POL,DB, 9.375 INCH X 3.75 INCH X 1.18 INCH (1041-020) +$88.25

QTY: D73 STONE: POL,FC, 12.43 INCH X 4.25 INCH X 1.18 INCH (1041-054) +$122.56

QTY: D74 STONE: POL,DT, 9.375 INCH X 2.8 INCH X 1.18 INCH (1041-025) +$66.79

QTY: D75 STONE: POL,FTS, 9.86 INCH X 2.8 INCH X 1.18 INCH (1041-056) +$75.55

QTY: D76 STONE: POL,DC, 12.43 INCH X 2.3 INCH X 1.18 INCH (1041-022) +$76.82

QTY: D77 STONE: POL,RC, 9.5 INCH X 6.25 INCH X 1.18 INCH (1041-015) +$197.44

QTY: D78 STONE: POL,RS, 9.7 INCH X 9.5 INCH X 1.18 INCH (1041-010) +$199.88

QTY: D79 STONE: POL,S, 9.7 INCH X 9.5 INCH X 1.18 INCH (1041-040) +$135.26

QTY: 80 PLATE: SIDE (2010-065) +$357.00

QTY: 81 LEG: SIDE,MATTE (2010-030) +$341.17

QTY: 82 TRIM: SIDE,MATTE (2010-067) +$92.06

QTY: 83 ROD: THREAD,3/8-16x21 INCH, 0.31 INCH AND 2 INCH (5210-2320) +$46.60

Item Description (Part Number)

QTY: SOAP STONE STEAMER W/ BLUE BLACK ENAMEL LID (90-99112) +$135.45

QTY: THERMOMETER-STOVETOP,SOAPSTONE (90-99120) +$45.33

QTY: GASKET KIT (90-58010) +$97.15
