Tucson B Vent Gas Stove (8720)


Item#: 8720

Price: $0.00


Order Now

MAIN ASSEMBLY

Item Description (Part Number)

QTY: 1A- Polished Gray Soapstone Set (9760-41) +$293.93

QTY: 1 Polished Top Stone [2 per unit, each sold separately] [must specify stone color] (1741-350) +$87.49

QTY: 2 Polished Side Stone [4 per unit, each sold separately] [must specify stone color] (1741-351) +$192.57

QTY: 3 Bottom Casting (2710-116) +$357.00

QTY: 4 Ashlip (2710-220) +$237.64

QTY: 5 Right Side Casting (2710-321) +$286.36

QTY: 6 Left Side Casting (2710-326) +$269.30

QTY: 7 Cast Firebox Baffle (2710-480) *No Longer Available* +$*0.00*

QTY: 8 Heat Exchanger (2710-486) +$Call to Order

QTY: 9 Door (2710-511) +$330.20

QTY: 10 Glass Retainer Frame (2710-560) +$130.18

QTY: 11 Front Grill (5710-581) +$Call to Order

QTY: 12 Door Handle (2710-655) +$18.75

QTY: 13 Top Grill Plate (2710-810) *No Longer Available* +$*0.00*

QTY: 14 Top Casting (2710-815) +$357.00

QTY: 15 Glass with Gasket ~Old Part # 3030-027~ (97-58705) +$240.51

QTY: 16 Door Gasket [8 ft per package] (3110-057-8) +$76.61

QTY: 17 Glass Gasket [6 ft per package] (3160-080-6) +$57.46

QTY: 18 Fire Box/Draft Hood Gasket ~Old Part # 3160-148~ (CFPAP1/8-48-65-2) +$33.42

QTY: 19 Heat Exchanger Gasket (3160-150) +$25.75

QTY: 20 Label: On/Off/T-Stat (3300-334) +$36.12

QTY: 21 Lighting Instruction Label (3300-502) +$32.69

QTY: 22 Installation Warming Label (3300-506) +$Call to Order

QTY: 23 Safety Rating Label (3300-507) +$Call to Order

QTY: 24 Fuel Conversion Label (3300-510) +$17.01

QTY: 25 Hinge Cap Plug [2 per unit, each sold separately] (4700-0605) +$10.95

QTY: 26 Access Door Magnet (4700-0795) +$15.68

QTY: 27 Threaded Rod [2 per unit, each sold separately] (5210-3070) +$14.34

QTY: 28 Ember Support Scree [serial# pre 005302] (5320-070) +$93.10

QTY: 29 Valve and Ignitor Bracket (5710-121) +$179.17

QTY: 30 Access Door (5710-128) +$44.06

QTY: 31 Pilot Bracket (5710-132) +$Call to Order

QTY: 32 Pilot Shield (5710-141) +$42.79

QTY: 33 Burner Tube Holder [serial# pre 005302] (5710-152) +$73.01

QTY: 33A Burner Tube Holder [serial# post 005302] (5320-072) +$46.60

QTY: 34 Air Intake Flap (5710-160) +$45.33

QTY: 35 Hinge Bracket (5710-170) +$Call to Order

QTY: 36 Latch Bracket (5710-180) *No Longer Available* +$*0.00*

QTY: 37 Stone Clip [2 per unit, each sold separately] (5710-470) +$46.60

QTY: 38 Firebox (5710-513) +$529.96

QTY: 39 Draft Hood (5710-550) +$432.52

QTY: 40 Spill Switch Bracket (5710-555) +$18.34

QTY: 41 Exit Collar (5710-680) +$Call to Order

QTY: 42 Baffle Clip (5710-594) *No Longer Available* +$*0.00*

QTY: 43 Hi-Temperature Wire [Sold Per Foot] (7000-018) +$14.34

QTY: 44 On/Off Wire Harness (7000-032) +$61.71

QTY: 45 3/16 Inch Loop Strap for Spill Switch (7000-121) +$10.95

QTY: 46 Insulating Bushing for Spill Switch (7000-122) +$10.95

QTY: 47 3-Way On/Off/T-Stat Switch (7000-200) +$84.69

QTY: 48 Burner Orifice #40 - NG (7200-240) +$25.75

QTY: 48A Burner Orifice #53 - LP (7200-253) +$17.28

QTY: 49 Straight Compression Fitting (7210-007) +$41.52

QTY: 50 Thermopile Metal Wrapped (7210-090) +$137.92

QTY: 51 Piezo Igniter with Pal Nut [this igniter is the round Part you push to generate a spark] ~Old Part # 7210-103~ (90-99020) +$55.58

QTY: 52 Manifold Supply Tube ~Old Part #7211-005~ (7211-018) +$54.18

QTY: 53 Pilot Tube (7211-009) +$51.38

QTY: 54 90 Degree Compression Elbow (7211-020) +$55.58

QTY: 55 Flue Spill Switch (7211-026) +$98.70

QTY: 56 Burner Tube [serial# pre 004882] (7211-226) +$279.05

QTY: 56A Burner Tube [serial# 004882-005302] (7211-229) +$123.83

QTY: 56B Burner Tube [serial # after 005302] (97-80200) *No Longer Available* +$*0.00*

QTY: 56C Blind Rivet [4 per unit, each sold separately] (4400-0200) +$Call to Order

QTY: 56D Left Ember Support Screen (5320-075) *No Longer Available* +$*0.00*

QTY: 56E Right Ember Support Screen (5320-077) +$32.69

QTY: 57 Primary Air Control Shutter [serial# post 005302] (7211-231) +$85.71

QTY: 58 SIT Universal Gas Valve [LP or NG][To convert this valve flip the conversion pin] [50% Turn Down] ~Old Part #7211-310~ (7211-320) +$436.56

QTY: 59 3 Way Top-Convertible Pilot Assembly NG Sit [Includes: Thermopile, Thermocouple, Pilot, Pilot Tube, Electrode with wire] [recommend using High Temp Red Silicone] [To convert to LP you must also order Part #7211-136] (7211-370) +$307.65

QTY: 59A Pilot Orifice #30MM - LP ~Old Part #7211-131~ (7211-136) +$66.63

QTY: 59B High Temperature Red Silicone (70AW) +$18.33

QTY: 60 3-Way SIT Pilot Hood Top Convertible (7211-390) +$48.57

QTY: 61 Ceramic Electrode with Piezo Wire (7211-430) +$45.77

QTY: 62 Thermocouple [If this Unit has an Original Pilot Assembly, the new thermopile will be short. Must Upgrade to a New Pilot Assembly] (7211-470) +$48.57

QTY: 63 Rear Log [serial# pre 005302] (7211-554) +$160.91

QTY: 64 Middle Log [serial# pre 005302] (7211-555) +$116.91

QTY: 65 Front Log [serial# pre 005302] (7211-556) *No Longer Available* +$*0.00*

QTY: 66 Top Log [serial# pre 005302] (7211-557) *No Longer Available* +$*0.00*

QTY: 67 Ceramic Embers (7211-558) +$93.10

ITEMS NOT SHOWN - MAIN ASSEMBLY

Item Description (Part Number)

QTY: 68 Burner/Log Upgrade Kit [serial # 004882-005302] (93-81200) +$Call to Order

QTY: 68A Burner Tube (97-80200) *No Longer Available* +$*0.00*

QTY: 68B Burner Tube Holder [serial# post 005302] (5320-072) +$46.60

QTY: 69 Log Set [serial# after 005302] (93-66200) +$257.12

QTY: 69A Main Log (7211-560) +$227.89

QTY: 69B Twig (7211-561) +$154.81

QTY: 69C Ceramic Embers (7211-558) +$93.10

QTY: 70 Hard Wired Wall Thermostat [wire sold separately 7000-014] (90-56920) +$48.74

QTY: 70A Thermostat Wire with Terminals [40 ft](7000-014) +$109.90

QTY: 70B Wall Thermostat (7200-506) *No Longer Available* +$*0.00*

QTY: 71 Conversion Kit - LP to NG [serial# post 004556] (93-56200) +$165.31

QTY: 71A Burner Orifice #40 - NG (7200-240) +$25.75

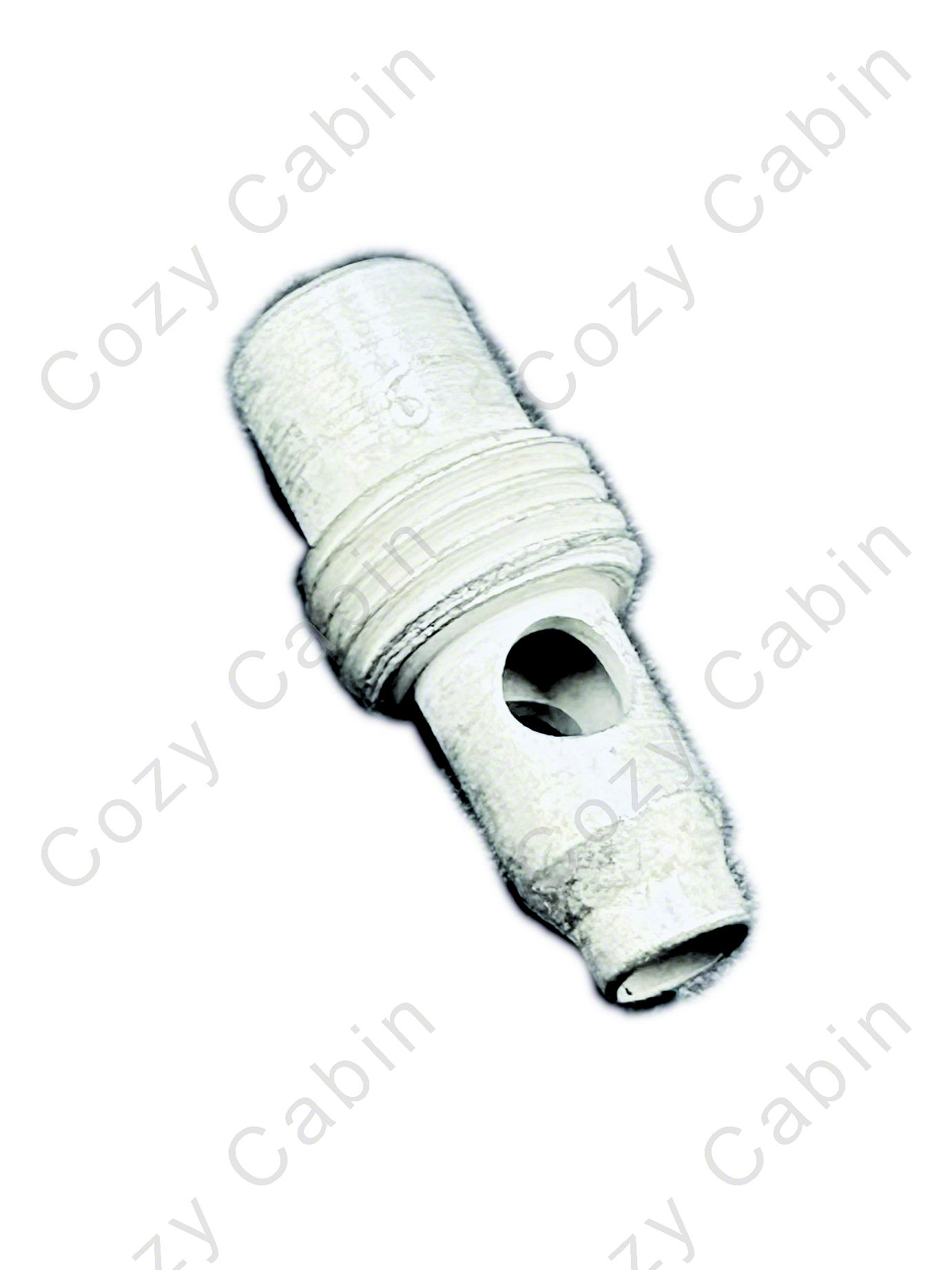

QTY: 71B SIT Pilot Orifice .62mm NG with Threads (7211-163) +$68.03

QTY: 71C SIT Regulator Valve 50% Turndown - NG (7211-312) +$153.33

QTY: 72 Conversion Kit - LP to NG [serial# pre 004556] (93-56906) +$157.53

QTY: 72A Burner Orifice #40 - NG (7200-240) +$25.75

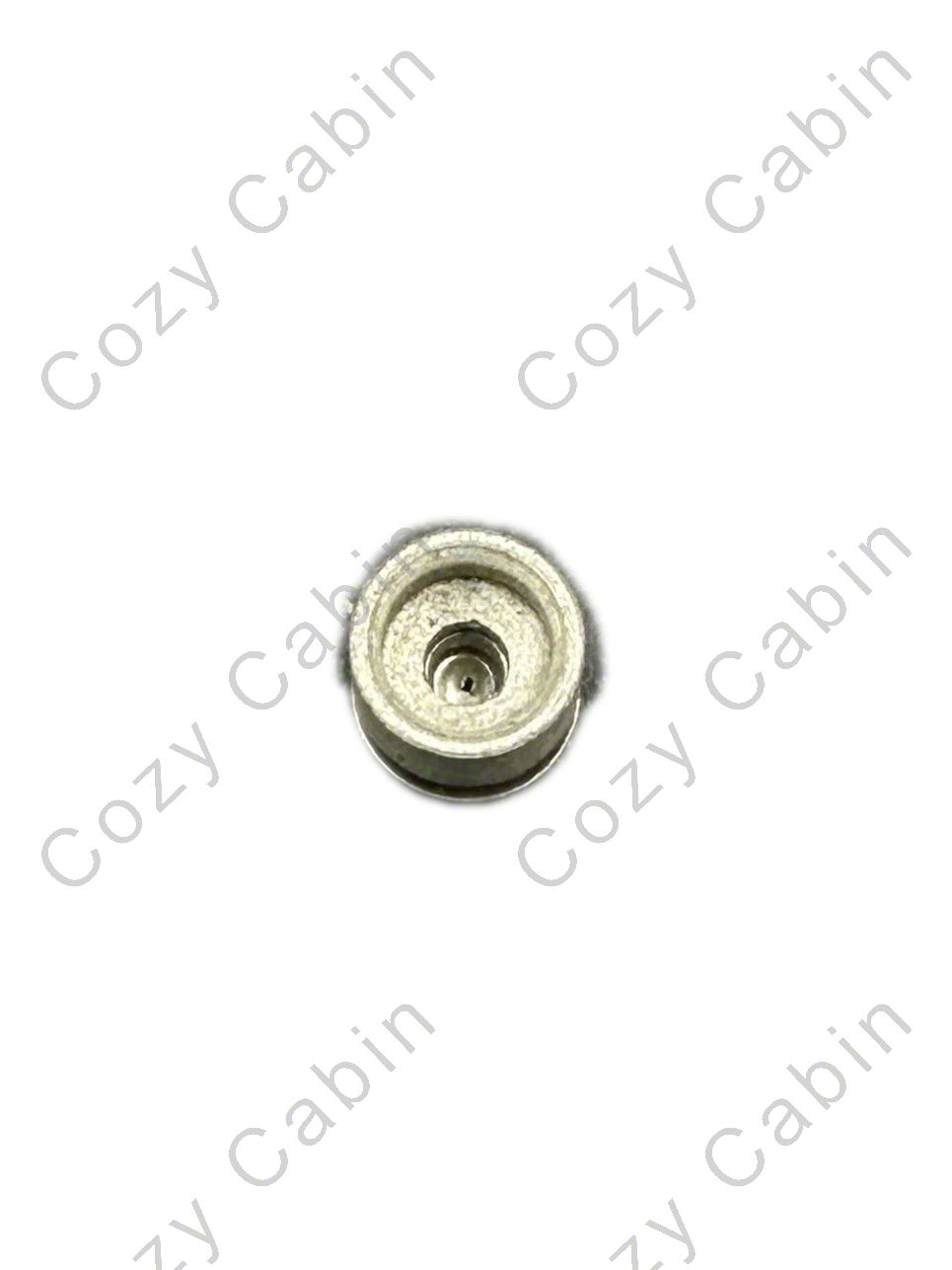

QTY: 72B Drop Down Pilot Orifice .51MM - NG (7211-151) +$43.03

QTY: 72C SIT Regulator Valve 50% Turndown - NG (7211-312) +$153.33

QTY: 73 Conversion Kit - NG to LP [serial# after 004556] (93-56201) +$156.13

QTY: 73A Burner Orifice #53 - LP (7200-253) +$17.28

QTY: 73B Pilot Orifice .30MM - LP ~Old Part # 7211-131~ (7211-136) +$66.63

QTY: 73B SIT Regulator Valve 50% Turndown - LP (7211-313) +$121.11

QTY: 74 Conversion Kit - NG to LP [serial# pre 004556] (93-56907) +$135.12

QTY: 74A Burner Orifice #53 - LP (7200-253) +$17.28

QTY: 74B Drop Down Pilot Orifice .30 - LP (7211-130) +$51.38

QTY: 74CSIT Regulator Valve 50% Turndown - LP (7211-313) +$121.11

QTY: 75 Soapstone Steamer with Blue Black Enamel Lid (90-99112) +$199.00

QTY: 76 Owner's Manual [Hard Copy] [6400-40433] (OMHC-H) +$21.99

QTY: 77 Owner's Manual [Electronic Copy] [6400-40433] (OMEL-H) +$9.99
QTY:
